Aircal heat pump delivers maximum comfort while keeping noise levels low
Get some quiet heat pump in your life now.

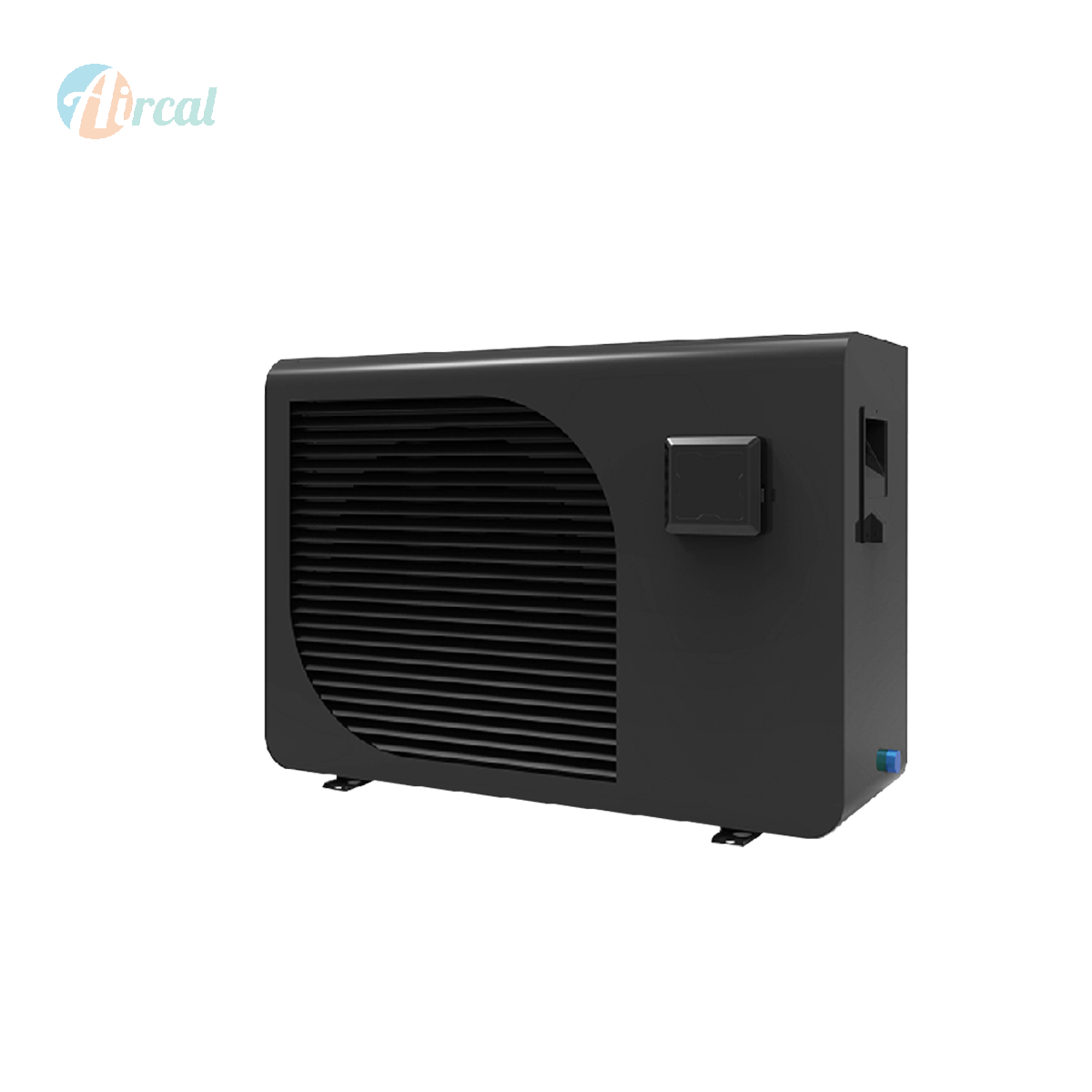

Victory Series Heat Pump is a metal casing heat pump. A conventional on/off heat pump is slightly cheaper than a variable-speed (DC inverter) heat pump, but results in lower savings. It delivers economical, high-efficient water heating and cooling for your swimming pool. Capacity from 4kW to 22kW for conventional on/off heat pump and 7kW to 26kW for variable-speed (DC inverter) heat pump. Wide range of capacity avilable for your choice. Suitable for pool size from 20m3 to 110m3.
Features:
Function: On/Off or DC Inverter available
Capacity: 7~26kW
High COP up to 13.38
Energy saving up to 75%
Environmental friendly
Comfortable low noise
Metal Casing
Anti freeze Heat exchanger
Noise Level
Aircal heat pump delivers maximum comfort while keeping noise levels low
Get some quiet heat pump in your life now.
WIFI
Optional Wi-Fi control with mobile app.
Controller
Intelligent frequency conversion control system with smart control panel.
Environment friendly
With most of the energy absorbed from the air with R32 refrigerant gas,
Aircal pool heat pumps can heat your pool and spa all year round with much less cost.
Running at low cost and without CO2 emmision all year round,
you can enjoy swimming or spa at comfort water temperature all over the year.
High COP
Aircal heat pumps deliver economical, high-efficient water heating and cooling for your swimming pool.
Full Inverter Control System
Adopting mature DC frequency conversion technology, in line with the concept of intelligent heat pumps.
Multiple functional modes
The pool heat pump has four modes of function, suitable for different working environments. Including: Auto, Boost, Smart, Eco functions, etc., adjust the frequency based on changes in water temperature and ambient temperature to achieve energy-saving goals and maintain functional capabilities.
Seasonal constant temperature
Equipped with powerful defrosting function, fearless of cold winter.
Unique protection features
With multiple intelligent heat pump protection functions: grounding protection, temperature difference protection, phase loss protection, high/low voltage protection, water flow protection, frost protection, temperature sensor fault protection.
Seasonal constant temperature
Equipped with intelligent mode to dynamically work according to different climates to maintain the temperature of your swimming pool, people can enjoy swimming or spa at comfortable water temperatures all year round.
Applications
Aircal swimming pool heat pump is a smart and reliable solution to heat the pool, spa or or fish cultivation.
Running at low cost and without CO2 emmision all year round.
INVERTER | Victory inverter | Victory inverter | Victory inverter | Victory inverter | Victory inverter | Victory inverter | |
Ambient | 26℃ | 70 | 90 | 120 | 150 | 200 | 260 |
Advised pool volume | m³ | 20-35 | 25-40 | 35-50 | 50-70 | 60-80 | 80-110 |
Heating temperatuer range | ℃ | 15~40 | 15~40 |
15~40 |
15~40 |
15~40 |
15~40 |
Cooling temperatuer range | ℃ | 8~28 | 8~28 |
8~28 |
8~28 |
8~28 |
8~28 |
Operating range | ℃ | -10~43 | -10~43 |
-10~43 |
-10~43 |
-10~43 |
-10~43 |
Air 26℃ Water 26℃ Inverter mode | Capacity(kw) | 7.56~2.26 | 10.4~2.48 | 12.5~2.89 | 15.6~3.61 | 20.8~4.86 | 26.1~6.51 |
Power input(kw) | 1.12~0.17 | 1.5~0.19 | 1.82~0.216 | 2.25~0.27 | 3.04~0.366 | 4.31~0.58 | |
Input current(A) | 4.92~0.76 | 6.59~0.85 | 7.99~0.97 | 9.88~1.21 | 13.35~1.64 | 18.93~2.6 | |
COP | 13.31~6.74 | 13.33~6.93 | 13.38~6.87 | 13.37~6.93 | 13.28~6.84 | 11.22~6.06 | |
Air 15℃ Water 26℃ Inverter mode | Capacity(kw) | 5.6~1.67 | 7.7~1.83 | 9.37~2.17 | 12.48~2.88 | 15.6~3.59 | 20.02~4.93 |
Power input(kw) | 1.18~0.23 | 1.58~0.25 | 1.9~0.3 | 2.53~0.4 | 3.17~0.503 | 4.4~0.7 | |
Input current(A) | 5.18~1.01 | 6.94~1.1 | 8.34~1.34 | 11.11~1.79 | 13.92~2.25 | 19.32~3.14 | |
COP | 7.26~4.75 | 7.32~4.87 | 7.23~4.93 | 7.24~4.93 | 7.14~4.92 | 7.01~4.55 | |
Power supply | 220-240V~/50Hz | 220-240V~/50Hz |
220-240V~/50Hz |
220-240V~/50Hz |
220-240V~/50Hz |
220-240V~/50Hz |
|
Water flow | m³/h | 2.5 | 3.3 | 4.0 | 5.3 | 6.7 | 8.7 |
Refrigerant volume | R32/310g | R32/420g | R32/550g | R32/750g | R32/900g | R32/1200g | |
Min pressure/Max pressure | 1.5/4.5MPa | 1.5/4.5MPa | 1.5/4.5MPa | 1.5/4.5MPa | 1.5/4.5MPa | 1.5/4.5MPa | |
Unit net dimensions | mm | 880*320*605 | 880*320*605 | 930*340*650 | 930*340*650 | 930*340*650 | 1130*410*710 |
Net weight | kg | 39 | 41 | 43 | 45 | 50 | 70 |
Compressor brand | GMCC | GMCC |
GMCC |
GMCC |
GMCC |
GMCC |
|
Compressor type | Single-Rotary | Single-Rotary |
Twin-Rotary | Twin-Rotary |
Twin-Rotary |
Twin-Rotary |
|
ON/OFF |
Victory | Victory |
Victory |
Victory |
Victory |
Victory |
|
Ambient | 26℃ | 70 | 90 | 120 | 150 | 180 | 220 |
Advised pool volume | m³ | 25~35 | 35~45 | 45~60 | 60~75 | 70~90 | 85~105 |
Heating temperatuer range |
℃ | 15~40 | 15~40 |
15~40 |
15~40 |
15~40 |
15~40 |
Cooling temperatuer ranger | ℃ |
8~28 | 8~28 |
8~28 |
8~28 |
8~28 |
8~28 |
Operating rang | ℃ |
5~43 | 5~43 |
5~43 |
5~43 |
5~43 |
5~43 |
Air 26℃ Water 26℃ |
Capacity(kw) |
7.02 | 9.31 | 12.5 | 15.24 | 17.92 | 21.72 |
Power input(kw) |
1.13 | 1.51 | 2.01 | 2.46 | 2.89 | 3.51 | |
Input current(A) |
5.01 | 6.7 | 8.92 | 10.91 | 12.82 | 15.57 | |
COP |
6.21 | 6.17 | 6.22 | 6.2 | 6.2 | 6.19 | |
Air 15℃ Water 26℃ |
Capacity(kw) |
5.07 | 7.05 | 9.05 | 10.59 | 12.6 | 15.3 |
Power input(kw) |
1.01 | 1.39 | 1.78 | 2.07 | 2.47 | 2.98 | |
Input current(A) |
4.48 | 6.17 | 7.9 | 9.18 | 10.96 | 13.22 | |
COP | 5.02 | 5.07 | 5.08 | 5.12 | 5.1 | 5.13 | |
Power supply | 220-240V~/50Hz |
220-240V~/50Hz |
220-240V~/50Hz |
220-240V~/50Hz |
220-240V~/50Hz |
220-240V~/50Hz |
220-240V~/50Hz |
Water flow | m³/h |
2.5 | 3.2 | 4.01 | 4.7 | 5.6 | 7 |
Refrigerant volume | R32/0.58kg | R32/0.83kg |
R32/0.93kg |
R32/1.13kg |
R32/1.2kg |
R32/1.4kg |
|
Unit net dimensions | mm | 827*340*531 | 827*340*531 |
927*340*636 |
927*340*636 |
1067*405*692 | 1067*405*692 |
Net weight | kg | 41 | 49 | 52 | 54 | 63 | 79 |
Aircal swimming pool heat pumps are the most popular product in Europe market.
With years’ development, Aircal has a full range of heat pumps with swimming pool heat pumps occupying 70%, All in one heat pumps 15%, multifunctional DC inverter heat pumps 6% and others 9%. We have cooperation with customers mainly from Europe, such as France, Spain, Italy, UK, Portugal, Bulgaria and Switzerland etc.
