Micro-Channel Heat Coil

Micro-channel heat coils with multi-flow allow the refrigerant and the surface of the water tank to have a large-area heat exchange, which highly improves the heat transfer efficiency.

PV Ready Homes

The Aircal R290&R134a water heater series all have PV READY function，this means that it meets certain characteristics and requirements that will facilitate the installation of a solar energy system and optimize it for maximum solar electricity production.

Energy Saving

Lower heating and cooling costs while staying comfortable with a heat pump water heater.

Aircal sanitary hot water heat pump is one of the most economical systems to heat the water for domestic hot water. Using free renewable energy from the air , the all in one heat pump is highly efficient with low running costs for all day.

Higher water temperature output up to 70℃

Aircal heat pump water heater enable domestic hot water requirement in a large amount.

Feel the difference in your home comfort with an aircal heat pump.

Conveninet control panel with simple key operation

Intelligent remote controller available ,

can displays error code when problems accured , easy for maintenance.

Top Part OEM/ODM

Aircal offer heat pump top part OEM/ODM for your own All In One heat pump assembled at local market. It can largely save your shipping cost.

Water Tank Inside

Variable water tank material such as 304,316 stanless steel, strong corrosion resistance 2205 duplex steel, and enamel for small size tank. High density foam with good insulation can effectively lock the heat.

Refrigerant

Beside tradition R134a refrigerant gas, Aircal also develop new R290 gas all in one heat pump, most energy-saving and environment-friendly . Water cycle with dual pipes inside the top part but not in the water tank, much easier for repair than traditional R134a DHW heat pump.

Aircal heat pump delivers maximum comfort  to your whole family

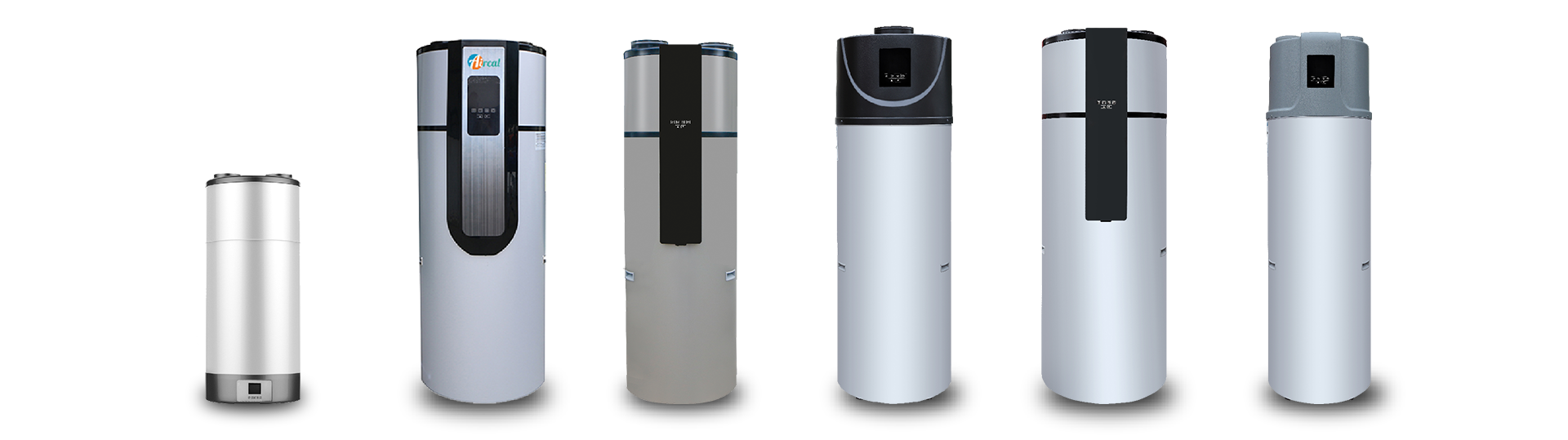

There are 100L wall mounted, 200L, 300L and 500L, which are able to meet water requirement from small apartment of 2 persons to a large amount of water demand upto 10 persons.

Scenes To Be Used

Free standing compact design, easy for installation and save space, can be installed in the balcony, garage, equipment room, storage room, cabinets, etc.

working principle

Aircal All in One heat pump are designed in compact structure with good quality components preassembled, all parts are convenient to reach for maintenance.

High-technology rotational compressor allows higher energy efficiency and better coefficient of performance, Aircal heat pump efficiency can be upto 3 to 4 times more than conventional gas boiler or electrical heater.

DHW tank disinfection

By heating the water in the system to 70°C, the high temperature kills most bacteria (including Legionella).

Noble Air series
		Universal effect			High Efficient
Model		Noble Air 200L	Noble Air 300L	Noble Air 500L	Noble Air+200L	Noble Air+300L
Ambient Temperature:(DB/WB) 20℃/15℃；Water Temperature from 15℃ to 55℃
Rated Heating Capacity	KW	2.02* (+1.5**)	2.02* (+1.5**)	3.80* (+1.5**)	2.06*+（1.5**）	2.06*+（1.5**）
Consumen Power	KW	0.486	0.486	0.945	0.4777	0.4777
COP		4.16	4.16	4.02	4.32	4.32
COP （COP at Air 15℃）		2.636	2.685	2.90	2.90	3.10
COP（COP at Air 20℃）		2.8	2.9	3.10	3.05	3.31
Hot Water Volume	L/h	45	45	82	45	45
Operation Range	℃	-20~60，HP:-5~43	-20~60，HP:-5~43	-20~60，HP:-5~43	-20~60，HP:-5~43	-20~60，HP:-5~43
Max.Outlet Water Temp	℃	Heat Pump 65  Electric Heater 70	Heat Pump 65  Electric Heater 70	Heat Pump 65  Electric Heater 70	Heat Pump 65  Electric Heater 70	Heat Pump 65  Electric Heater 70
Max. Power Input	KW	2.2	2.2	2.8	2.1	2.1
Max. Running Current	A	3.14	3.14	5.83	2.69	2.69
Power Supply	V/Ph/Hz	220-240V / ~ /50Hz
Wi-Fi Function		Optional
Electric Heating	KW	1.5	1.5	1.5	1.5	1.5
Noise	dB(A)	55	55	59	58	58
Gas Control		Electronic expansion valve
Refrigerant		R134a
Condenser		Microchanel heat exchanger
Defrosting		Auto defrost with 4 way valve
Water Tank Type		Enamel
Net weight	KG	90	99	117	90	105
Net Dimensions	mm	520*1755	600*1850	700*2253	560*1755	640*1850
Loading quantity 20GP/40GP,40HQ	pcs	36/76/76	24/51/51	45(40HQ)	36/76/76	24/51/51

Aircal also offer OEM/ODM design for your own brand of All in one heat pump water heater.

Heat pump water heater are excellent energy-saving solutions of residence, more energy saving than conventional gas boiler or electrical heater. Contact us now.Certifications

The water heater has attained CE and Erp Certifications.

What is a heat pump for hot water?

Heat pump water heaters use electricity to move heat from one place to another instead of generating heat directly. Therefore, they can be two to three times more energy efficient than conventional electric resistance water heaters. To move the heat, heat pumps work like a refrigerator in reverse.

Which is better heat pump or solar hot water?

While both options will help you heat water at a lower cost to you and the planet, heat pumps are generally the most efficient way to go. The upfront cost of buying and installing a heat pump system is usually less (sometimes significantly less) than a solar hot water system.

Are hot water heat pumps noisy?

All in all, while there may be some noise associated with hot water heat pumps they are usually very quiet and won't cause any disruption to your daily life.

Do heat pumps cost a lot to run?

In general, heat pumps are more expensive to run than conventional heating systems, but they can save you money over time if you live in a climate where they are used frequently.

Should I get a new boiler or heat pump?

Heat pump vs gas boiler—which is best? Most people are better off with a heat pump instead of a gas boiler. Heat pump heating efficiency blows even the newest most-efficient gas boilers out of the water! Heat pumps provide amazingly even, consistent heat for far less energy than a boiler.
