Comfort Air R134a Split Unit Heat Pump water cycle Heat Pump

Split type design heat pump water heater. Installation space and costs are greatly reduced with one integrated system for domestic hot water supply.

Features:

High COP 2.62 with air temperature at 7℃

Energy saving up to 75%

Environmental friendly R134a, R290 gas available

Comfortable low noise

Smart LCD Control

Advanced Technology

Quality-guaranteed Components

Solar Coil can be optional

Wifi control can be optional

Steel tank 304/316/Duplex tank optional

Energy Saving

Lower heating and cooling costs while staying comfortable with a heat pump water heater.

Aircal sanitary hot water heat pump is one of the most economical systems to heat the water for domestic hot water. Using free renewable energy from the air , the all in one heat pump is highly efficient with low running costs for all day.

Higher water temperature output upto 60℃

Aircal heat pump water heater enable domestic hot water requirement in a large amount.

Feel the difference in your home comfort with an aircal heat pump.Higher water temperature heat pump.png

Conveninet control panel with simple key operation

Intelligent remote controller available ,

can displays error code when problems accured , easy for maintenance.

control panel with simple heat pump.png

Top Part OEM/ODM

Aircal offer heat pump top part OEM/ODM for your own All In One heat pump assembled at local market. It can largely save your shipping cost.

Top Part OEMODM heater pump.png

Water Tank Inside

Variable water tank material such as 304,316 stanless steel, strong corrosion resistance 2205 duplex steel, and enamel for small size tank. High density foam with good insulation can effectively lock the heat.

Refrigerant

Beside tradition R134a refrigerant gas, Aircal also develop new R290 gas all in one heat pump, most energy-saving and environment-friendly . Water cycle with dual pipes inside the top part but not in the water tank, much easier for repair than traditional R134a DHW heat pump.

Aircal heat pump delivers maximum comfort  to your whole family

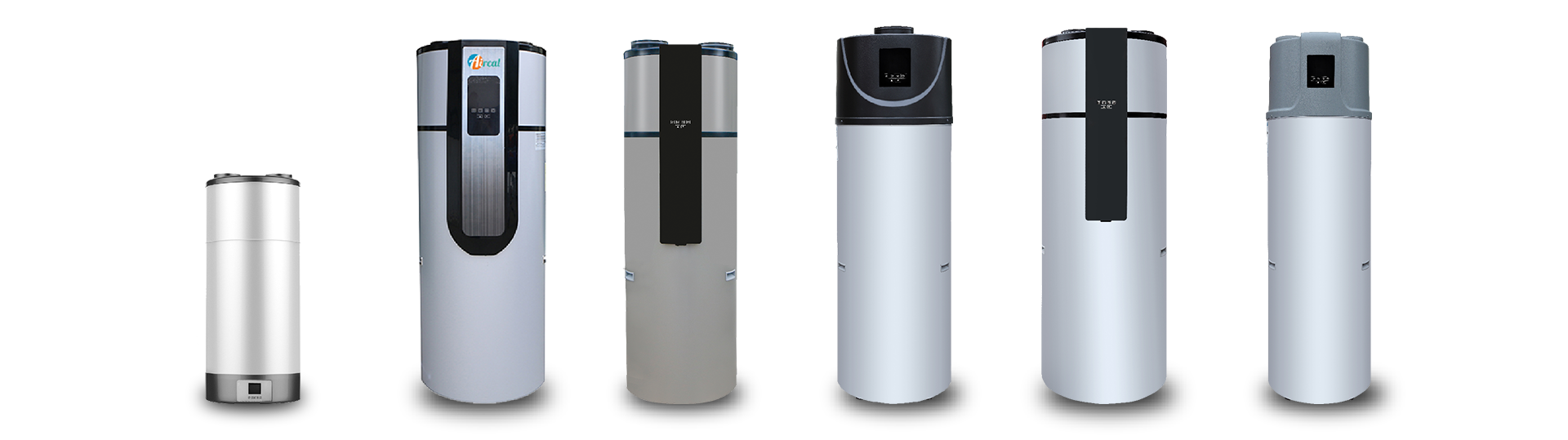

There are 100L wall mounted, 200L, 300L and 500L, which are able to meet water requirement from small apartment of 2 persons to a large amount of water demand upto 10 persons.

large amount of water demand.png

Scenes To Be Used

Free standing compact design, easy for installation and save space, can be installed in the balcony, garage, equipment room, storage room, cabinets, etc.

working principle

Aircal All in One heat pump are designed in compact structure with good quality components preassembled, all parts are convenient to reach for maintenance.

High-technology rotational compressor allows higher energy efficiency and better coefficient of performance, Aircal heat pump efficiency can be upto 3 to 4 times more than conventional gas boiler or electrical heater.

Model Elite Air 30 Elite Air 50 Elite Air 70 Elite Air 90 Elite Air 120
Heating1 Nominal capacity(kw) 3.02 5.02 7.03 9.01 11.71
Power input(kw) 0.735 1.22 1.71 2.09 2.72
COP 4.11 4.12 4.11 4.31 4.31
Heating2 Nominal capacity(kw) 2.61 4.35 6.11 7.81 10.1
Power input(kw) 0.703 1.17 1.650 2.02 2.63
COP 3.71 3.72 3.71 3.86 3.84
Heating3 Noninal capacity(kw) 2.45 4.06 5.66 7.33 9.35
Power input(kw) 0.763 1.265 1.763 2.27 2.81
COP 3.21 3.21 3.21 3.23 3.23
Power supply V/Ph/Hz 220V-240V~50HZ
Max.water outlet temperature 60
Rated water flow m³/h 0.6 1 1.4 1.6 2.1
water connection size inch G3/4'' G3/4'' G3/4'' G1'' G1''
Working temperature range -10~43 -10~43 -10~43 -15~43 -15~43
Refrigerant type R410A R410A R410A R410A R410A
Water pump Built-in water pump Built-in water pump Built-in water pump no water pump inside no water pump inside
Net Dimensions (HxWxD) mm 530*750*300 580*976*300 580*976*300 710*1010*360 1070*1120*380
Net weight kg 45 48 53 72 90
Sound pressure level dB(A) 48 49 49 52 54

Capacities and power inputs bassed on the following conditions:

Heating1:Water Inlet temperature 15~55℃,Outdoor air dry bulb/wet bulb temperature 20℃/15℃

Heating2:Water Inlet/Outlet temperature 30℃/35℃,Outdoor air dry bulb/wet bulb temperature 7℃/6℃

Heating3:Water Inlet/Outlet temperature 40℃/45℃,Outdoor air dry bulb/wet bulb temperature 7℃/6s℃

Aircal also offer OEM/ODM design for your own brand of All in one heat pump water heater.

Heat pump water heater are excellent energy-saving solutions of residence, more energy saving than conventional gas boiler or electrical heater. Contact us now.customization available hot water heat pump.png
