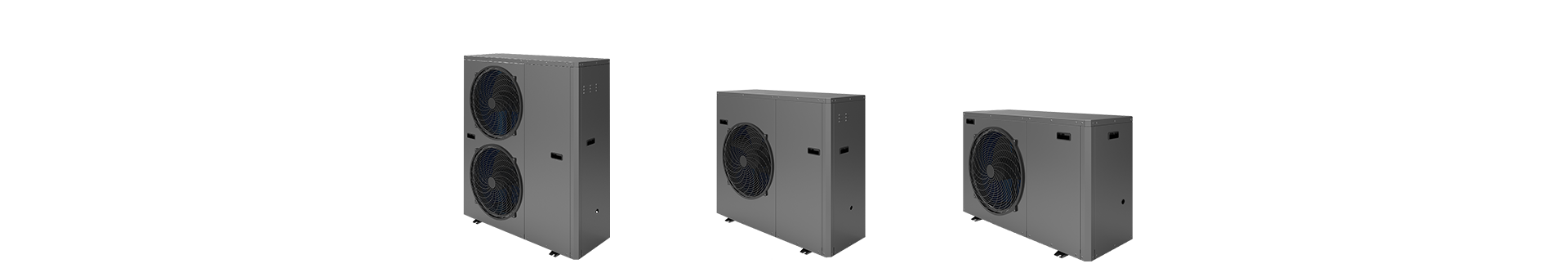

R32 6kw 9kw 12kw Split Heating and Cooling Heat Pump multifunctional full DC Powered Heat Pump Heating Cooling System CE Heat Pump

Aircal King Heat Series heat pump is high COP DC Inverter (variable-speed) heat pump for heating and cooling.

This series of heat pump can adjust the output capacity automatically and control the room temperature accurately.

The intelligent App control system provide convenient for everyone in the family to control. Due to the monobloc design, the heat pump are cost effective, space saving and quiet to run outside. It is high efficiency and providing wonderful performance and reliability.

The R32 refrigerant multifunctional DC inverter heat pumps ambient temperature can be down to -15℃. COP 30% higher than normal heat pump.

New R290 gas heat pump is also available.


Full DC inverter Technology.

High efficiency class A+++

Smart 5 inch Control Panel with Wifi Mobile app

Highly efficient

Environmental friendly R32, R290 gas available

Comfortable low noise

Advanced Technology

Quality-guaranteed Components

Smart Grid & PV Ready

SG ready and PV ready, the cost of use is reduced, and it meets the requirements of local policies.Power consumption of the system can be automatically adjusted according to the peak and valley power to reduce the power consumption to the greatest extent. PV ready, connect to solar power at home to realize solar power supply and reduce usage costs.

Smart Grid & PV ready.png

R32&R290 Intelligent Display Control

R32&R290 heat pumps utilize an intelligent LCD display with high definition interface which users can red and control very easily.

Moreover,Smart APP control brings a lot of convenience to users.

R32/R290 Low GWP Refrigerant

Reducing and preventng global warming is an important mission . Besides,With most of the energy absorbed from the air with refrigerant gas,running at low cost and without CO2 emmision all year round  to protect environment R32&R290 Refrigerant.png

A+++ Energy Level

Aircal King Heat Series has gained A+++ EU energy label. Highly efficiency

A+++ heat pump.png

Full DC Inverter Technology

Full DC inverter Mitsubishi compressor and DC inverter brushless motor. With this technology, users can enjoy a maximum level of comfort with the lowest costs

Full DC Inverter Technology.jpg

Intelligent Water Temperature Adjustment

The unique control logic enables users to adjust the outlet water temperature intelligently, Feel the difference in your home comfort with an aircal heat pump.

Water Temperature Adjustment.jpg

Noise Reduction Technology

Adopts multiple noise reduction technologies, every product has been repeatedly tested and optimized.

Low Noise  Multifunctional DC heat pump.png

Stable Running at -15℃ Ambient Temperature

Thanks to the unique Inverter EVI technology, can operate efficiently at -15°C, maintain high COP and reliable stability.

R32 -15℃ Ambient Temperature pump.jpg

Experience the smooth, quiet superior comfort of our most advanced heat pump

Lower heating and cooling costs while staying comfortable with a variable speed heat ... heat pump delivers maximum comfort while keeping noise levels low

IOT Web Platform Heat Pump

The fault report button creates a direct error report channel to the local service provider. When an error is reported, the service provider can notice the error information of the target house heating heat pump from the background system.The main functions of this platform include: centralized monitoring/visual management/intelligent linkage/fault alarm/report analysis/operation and maintenance management, etc.

Model                          (Specification for Multifunctional)

King Heat 6DC

King Heat 9DC King Heat 12DC King Heat 15DC
King Heat 18DC
Heating Capacity Range kw 1.9-6.3 2.8-9.0 3.8-12.0 4.8-15.2 5.7-18.2
Heating (A7/6℃,W30/35℃ Heating kw 6.27 8.96 11.96 15.19 18.13
Power Input kw 1.38 2.10 2.81 3.35 4.12
Current A 6.00 9.14 12.23 14.59 17.91
COP W/ 4.54 4.26 4.25 4.53 4.40
Cooling(A35/24℃,W23/18℃) Cooling kw 6.13 8.81 10.78 14.67 17.46
Power Input kw 1.59 2.48 3.17 4.13 5.07
Current A 6.90 10.79 13.79 17.94 22.03
EER W/ 3.86 3.55 3.40 3.55 3.45
Rated water flow m³/ 1.08 1.54 2.06 2.61 3.12
Rated voltage/Frequency V/H 230/50 230/50 230/50 230/50
Brand voltage/Frequency / Mitsubishi/Rotary Mitsubishi/Rotary Mitsubishi/Rotary Mitsubishi/Rotary
Refrigerant / R32 R32 R32 R32
Diameter of water connection / DN25(1") DN25(1") DN25(1") DN25(1")
Lowest Operational Ambient -20℃ -20℃ -20℃ -20℃
Highest Operational Ambient 45℃ 45℃ 45℃ 45℃
Net Dimensions(L/W/H) mm 1115/415/898 1115/415/898 1115/415/982 1115/415/1332
Net Weight kg 72 74 115 163 163
Loading quantity 20GP/40GP,40HQ pcs 37/72/72 37/72/72 37/72/72 20/40/40
Rated test conditions:Heating:DB/WB7℃/6℃,In/out:30℃/35℃.  Cooling:DB/WB:35℃/24℃,In/out:23''

Aircal also offer OEM/ODM design for your own brand of DC heat pump water heater

Heat pump water heater are excellent energy-saving solutions of residence, more energy saving than conventional gas boiler or electrical heater


Provide BAFA certificate & CE certificate and ERP report issued by professional institutions. Customize customer-specific certificates and reports.

Certificate R32.png


ROSH/SVCH certification

ROSH certification is an essential customs clearance requirement for the European Union, while SVHC&REACH certification, which is a mandatory requirement, continuously enhances environmental awareness.





We are always providing our customers with reliable products and considerate services.
